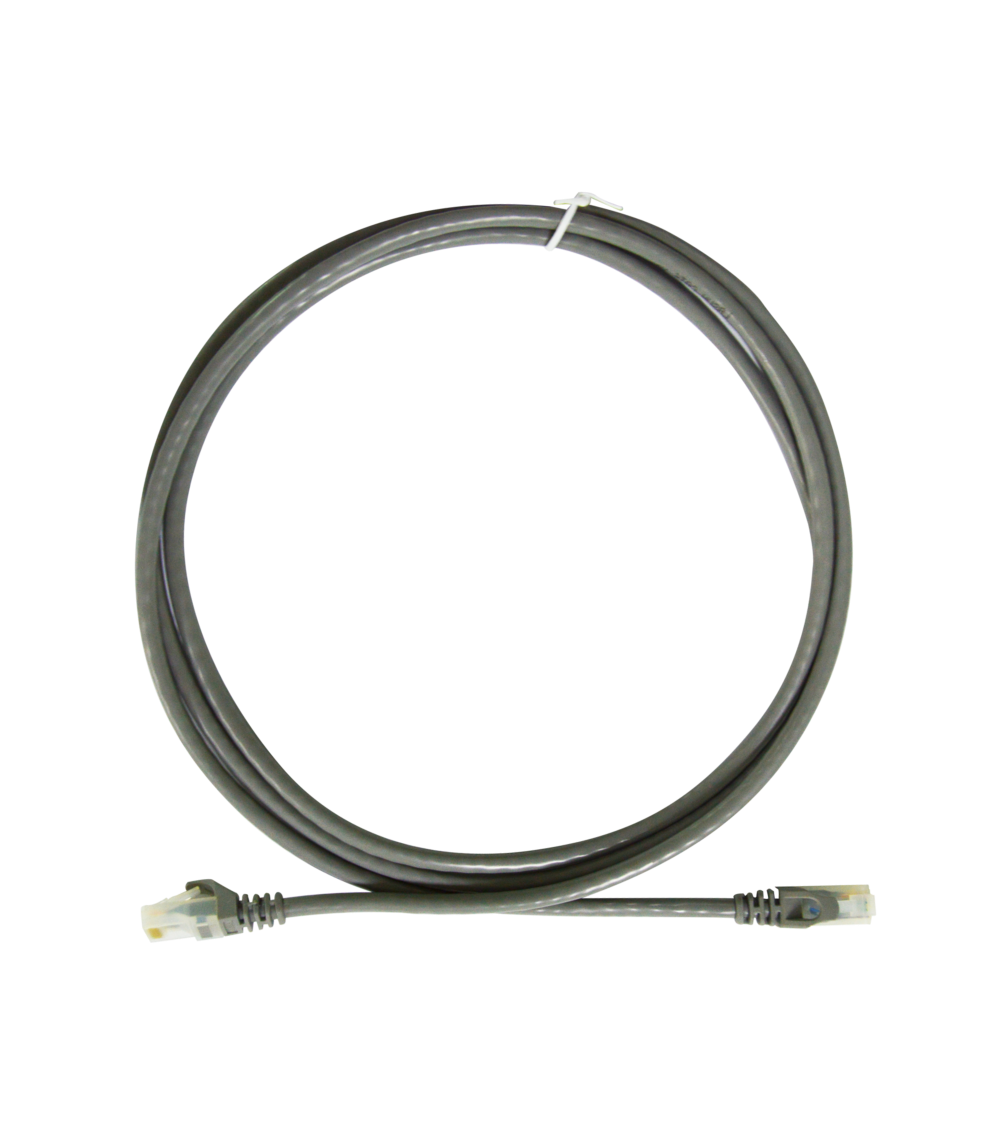

U/UTP 4Pairs Cat 6a Patch Cord

CreateDate:2016-10-27  Hits:
    • LASUN
    • ISO9001
    • UL
    • U/FTP
    • CAT6A

Product Description: U/UTP Cat6a Patch Cord
Rate Temperature: 60,75,90
Reference Standard: UL444,UL1581,UL1666
Flame Test: CM,CMR
Installation Temperature: -30~+50

Application:
100 Base-TX
100 Base-T
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
1000 Base-TX

PRODUCT & SPEC.

 Cat6a Patch Cord



INDESIDE

4 Pair

Structure

Construction

U/UTP

Conductor Dimension

7/0.20 Stranded wire

Conductor Material

Bare Copper

Insulation

Insulation Material

HDPE

Insulation Dimension

0.97±0.02mm

Number Color
 ( Ring or Strip Making)

1.blue/blue&white
2.Orange /Orange &white
3.green/green&white
4.Brown/Brown&white.

Cross Section Electrical Characteristics
(20°C)

Test Item :
1. Conductor D.C. Resistance

Cross Filer

NO

Units: /100m

Description

2.Connector

Cat6a RJ45 Long body Plug

3.Strain Relief Boot

Molded PVC Matching Jacket color

Physical Characteristics

  Unaged

Elongation

Tensil strength

Sheath

Outer Jacket Material

PVC,LSZH

  Insulation

>300%

>16.8KPa

 Ripcord

As customer request

    Jacket

>100%

>14.1KPa

Thickness

0.6±0.05mm

Aged

100

48 Hrs

Outer O.D

 6.3±0.20mm

  Insulation

>75% Unaged

>75% Unaged

Surface

Clean,Frap,Satiation

    Jacket

>50% Unaged

>75% Unaged

Packing

Packing Length

As customer request

PE bag,Carton

/

Carton Dimension

44*26*31cm
