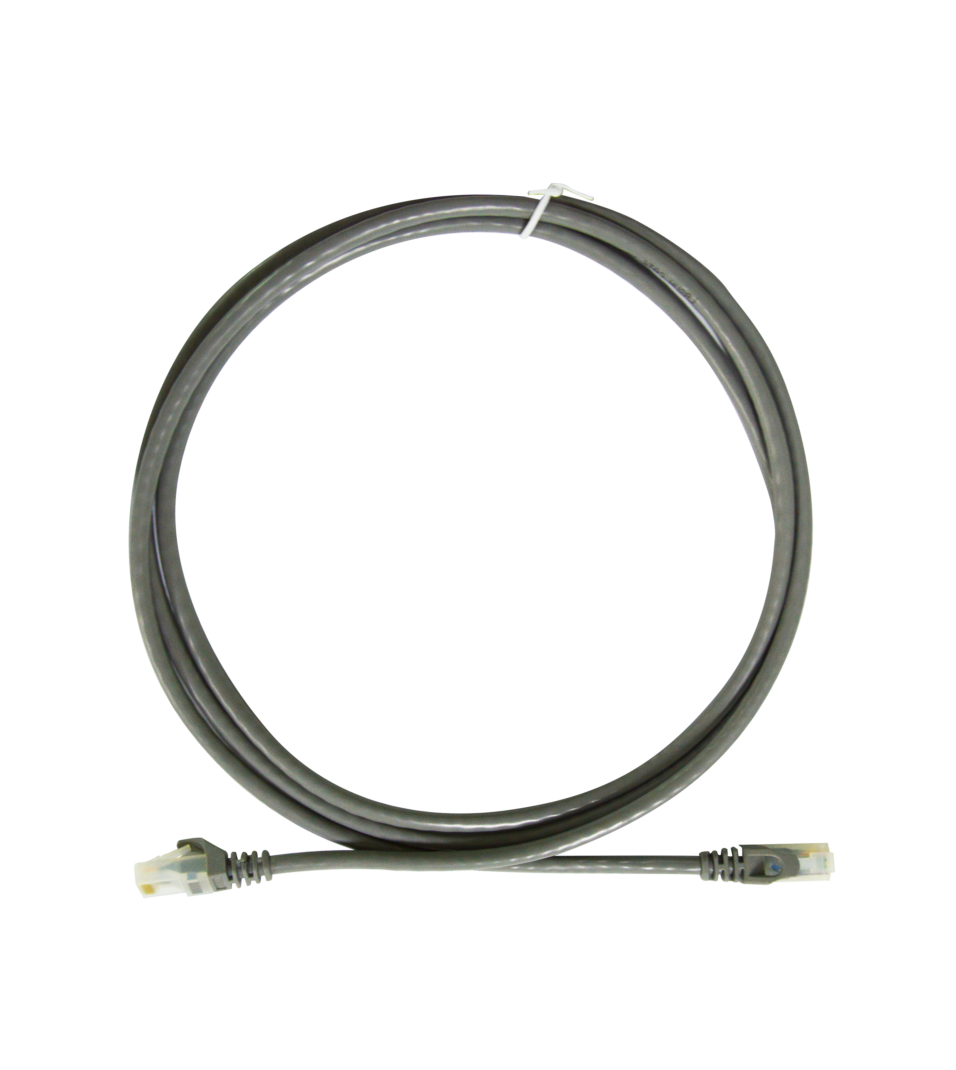

LASUN | Product Description: U/UTP Cat 5e Patch Cord Rate Temperature: 60℃ Reference Standard: EIA/TIA 568B.2 Flame Test: CM,CMR Installation Temperature: 60℃ | Application: | |||||
| | ||||||
| PRODUCT & SPEC. | Cat5e Patch Cord | | ||||
| INDESIDE | 4 Pair | |||||
| Structure | Construction | UTP | ||||
| Conductor Dimension | 24AWG Stranded | |||||
| Conductor Material | 7*0.18mm | |||||
| Insulation | Insulation Material | HDPE | ||||
| Insulation Dimension | 0.91±0.02mm | |||||
| Number Color | 1.blue/blue&white | Cross Section Electrical Characteristics | Test Item : | |||
| Cross Filer | NO | Units: /100m | ||||
| Description | 2.Connector | Cat5e RJ45 50U Plug | ||||
| 3.Strain Relief Boot | Molded PVC Matching Jacket color | Physical Characteristics | Unaged | Elongation | Tensil strength | |
| Sheath | Outer Jacket Material | PVC, LSZH | Insulation | >300% | >16.8KPa | |
| Ripcord | As customer request | Jacket | >100% | >14.1KPa | ||
| Thickness | 0.6±0.05mm | Aged | 100℃ | 48 Hrs | ||
| Outer O.D | 5.2±0.15mm | Insulation | >75% Unaged | >75% Unaged | ||
| Surface | Clean,Frap,Satiation | Jacket | >50% Unaged | >75% Unaged | ||
| Packing | Packing Length | As customer request | | |||
| PE bag,Carton | / | |||||
| Carton Dimension | 44*26*31cm | |||||
