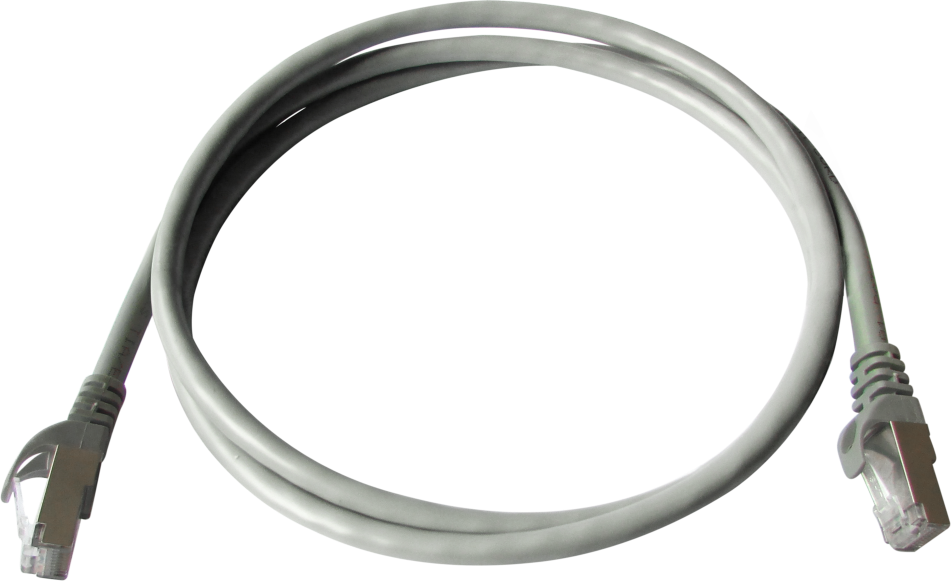

F/FTP 4Pairs Cat 6a Patch Cord

CreateDate:2017-01-11  Hits:
    • LASUN
    • Iso9001ISO9001
    • ULUL
    • SFTPF/FTP
    • CAT6CAT6A


Product Description:SSTP Cat6a
Rate Temperature: 60,75,90
Reference Standard: UL444,UL1581,UL1666
Flame Test: CM,CMR
Installation Temperature: -30~+50

Application:
100 Base-TX
100 Base-T
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
1000 Base-TX

PRODUCT & SPEC.

 Cat6a Patch Cord



INDESIDE

4 Pair

Structure

Construction

F/FTP

Conductor Dimension

7/0.16 Stranded wire

Conductor Material

Stranded Bare Copper

Insulation

Insulation Material

HDPE

Insulation Dimension

  0.87±0.01mm













Number Color
 ( Ring or Strip Making)

1.blue/blue&white
2.Orange /Orange &white
3.green/green&white
4.Brown/Brown&white.

Cross Section Electrical Characteristics
(20°C)

Test Item :
1. Conductor D.C. Resistance

Cross Filer

NO

Units: /100m

Description

2.Shielded Connector

Cat6a RJ45 Long body Plug

3.Strain Relief Boot

Molded PVC Matching Jacket color

Physical Characteristics

  Unaged

Elongation

Tensil strength

Shield

First Individual Shield

YES ( AL Foil pair by pair)

  Insulation

>300%

>16.8KPa

Second Shield

AL Foil

    Jacket

>100%

>14.1KPa

Sheath

Outer Jacket Material

PVC,LSZH

Aged

100

48 Hrs

Outer Jacket Ripcord

As customer request

  Insulation

>75% Unaged

>75% Unaged

Thickness

0.70±0.03mm

    Jacket

>50% Unaged

>75% Unaged

Outer O.D

6.8±0.15mm



Surface

Clean,Frap,Satiation

Packing

Packing Length

As customer request

PE bag,Carton

/

Carton Dimension

44*26*31cm
