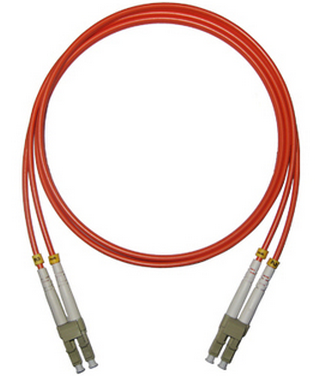

Optical Fiber Patch Cord (LX40322)

CreateDate：2017-01-11  Hits：



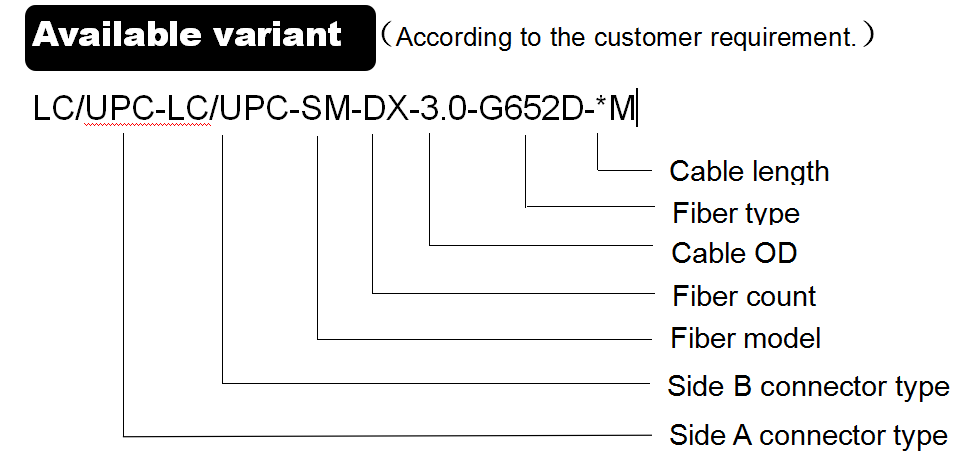

Features

Widely used to connect the trunk cable wiring devices

Suit for 900μm Single Mode or Multi Mode duplex cable

High quality connectors

Receive and transmit legs clearly indicated

Low insertion loss,High return loss.

Good repeatability、Mutual thrust performance

Good temperature stability

Conform to the IEC 874-7、TIA/EIA568 - B - 3

CECC86115-80 industry standards



Cable Profile

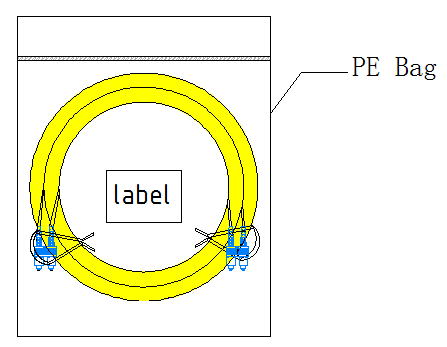

Packing





TIGHT BUFFER COLOR CODE   Connector Profile

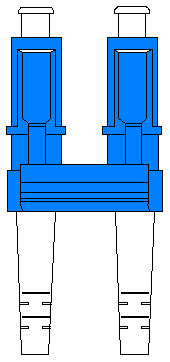

 LC/LC-SM

LC/LC-MM

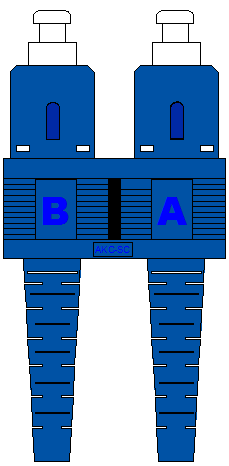

SC/SC-SM

SC/SC-MM

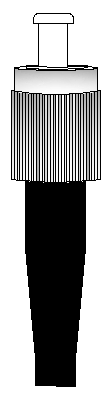

FC-SM/MM

ST-SM/MM

CONNECTOR PARAMETERS

Parameter

Unit

FC, SC, LC/ fiber patch cord

ST

SM

MM

SM

MM

PC

UPC

APC

PC

PC

UPC

PC

Insertion Loss(typical)

dB

≤0.3

≤0.3

≤0.25

≤0.3

≤0.3

≤0.3

≤0.3

Return Loss

dB

≥ 45

≥ 50

≥ 60

≥ 30

≥ 45

≥ 50

≥ 30

Operating Wavelength

Ex-changeability

Vibration

Operating /Storage Temperature

Cable Diameter

nm

dB

dB

℃

mm

1310, 1510, 850

≤ 0.2

≤ 0.2

-40~75/-45~85

  φ3.0, φ2.0, φ0.9

HT BUFFER COLOR CODE

FIBER

Tight Buffer Color Code

Outer Sheath

Single Mode

White

Yellow

Yellow

Multi-Mode

White

Orange

Orange

 10Gigabit Multi-Mode

White

Aqua

Aqua

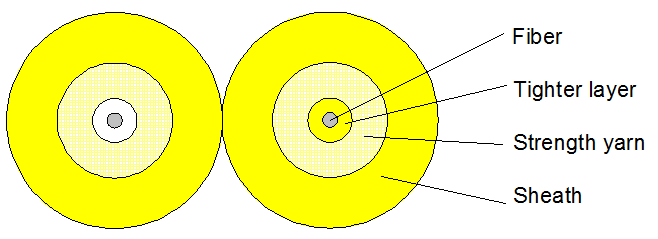

CABLE STRUCTURE SPECIFICATION

Fiber count

2F

Tight Fiber

OD(mm):

0.85±0.05

Material：

PVC

Strength Number

Strength yarn

Sheath

Thickness(mm):

0.3±0.05

0.45±0.05

Material：

LSZH/PVC

OD of cable(mm)

2.0*4.0

3.0*6.0

Net weight ( Kg/KM)

9.2

15.5

Maximum tensile（N）

60

100

SINGLE MODE FIBER PARAMETERS
