Stranded Aluminum Armored  FO  GYTA 2~288 Core (LX2023)

Configuration & Physical characters

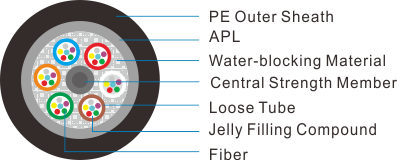

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.

Product Specification

Cable Type

Fiber Count

Cable Diameter(mm)

Cable Weight(kg/km)

Tensile Strength

Crush Resistance

Bending Radius

Long/Short Term

Long/Short Term

Static/ Dynamic

N

N/100mm

mm

GYTA-2~6

2~6

9

78

600/1500

300/1000

10D/20D

GYTA-8~12

8~12

9

78

600/1500

300/1000

10D/20D

GYTA-14~18

14~18

9

77

600/1500

300/1000

10D/20D

GYTA-20~24

20~24

9

77

600/1500

300/1000

10D/20D

GYTA-26~30

26~30

9

76

600/1500

300/1000

10D/20D

GYTA-32~36

32~36

9.3

86

600/1500

300/1000

10D/20D

GYTA-38~48

38~48

9.7

89

600/1500

300/1000

10D/20D

GYTA-50~60

50~60

9.7

88

600/1500

300/1000

10D/20D

GYTA-62~72

62~72

10.2

105

600/1500

300/1000

10D/20D

GYTA-74~84

74~84

10.9

117

600/1500

300/1000

10D/20D

GYTA-86~96

86~96

11.8

130

600/1500

300/1000

10D/20D

GYTA-98~108

98~108

12.4

141

600/1500

300/1000

10D/20D

GYTA-110~120

110~120

13.1

155

600/1500

300/1000

10D/20D

GYTA-122~132

122~132

13.7

167

600/1500

300/1000

10D/20D

GYTA-134~144

134~144

14.4

181

600/1500

300/1000

10D/20D

Temperature Range

Working

-40℃~+70℃

Storage/Transportation

-40℃~+70℃

Installation

-20℃~+60℃

Product Features & Application

Characteristics:

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber

4. Specially designed compact structure is good at preventing loose tubes from shrinking

5. PE sheath protects cable from ultraviolet radiation

6. The following measures are taken to ensure the cable watertight:

....Steel wire used as the central strength member

....Loose tube filling compound

....100% cable core filling

....APL moisture barrier

Standards:

GYTS cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Fiber Details

Fiber type

G.652D

G655

G657A.2

OM2

OM3

MFD @1310nm

9.2±0.4μm

1550nm: 9.6±0.5μm

8.8±0.4μm

50±2.5um

50±2.5um

OD of Cladding

128.0±0.7μm

125.0±0.7μm

125.0±0.7μm

125±1.0um

125±2.0um

Concentricity error

≤0.5μm

≤0.6μm

≤0.5μm

≤1.5um

≤1.5um

Non-circularity of cladding

≤ 0.7%

≤ 1.0%

≤ 0.7%

≤ 2.0%

≤ 2.0%

Cutoff wavelength

Λcc ≤1260 nm

Λcc ≤1450 nm

Λcc ≤1260 nm

Attenuation coefficient

1310nm

≤0.34dB/km

1550nm ： ≤0.22 dB/km

≤0.35 dB/km

850nm: ≤ 2.5dB/km

850nm: ≤ 2.5dB/km

1550nm

≤0.20 dB/km

1625nm： ≤0.24 dB/km

≤0.22 dB/km

1300nm: ≤ 0.7dB/km

1300nm: ≤ 0.7dB/km

Dispersion coefficient

1285-1340nm≤-3.0 ~ 3.0 ps/nm².km

1530-1565nm≤2.0-6.0ps/nm².km

1550nm≤18ps/nm².km

1565-1625nm≤4.5-11.2ps/nm².km

Zero-dispersion wavelength

1312±10 nm

≤1520nm

1300nm-1324nm

1295-1320 nm

1295-1320 nm

Zero-dispersion point slope

≤0.092ps/nm².km

≤0.084ps/nm².km

≤0.092ps/nm².km

1300-1320nm: ≤ 0.11 ps/（nm².km）

  ≤0.11 ps/（nm².km）

PMDQ

PMD_Q^*≤0.2ps/km^1/2

PMD_Q^*≤0.2ps/km^1/2

PMD_Q^*≤0.2ps/km^1/2

OD of coating layer

245±5μm

245±7μm

245±5μm

245±10um

245±10um

Screen tension

100kpsi（0.7Gpa）

100kpsi（0.7Gpa）

0.69MPa

100kpsi   0.7GPa

100kpsi   0.7GPa

 PACKAGE AND MARK

4.1 PACKAGE: Not allowed two length units of cable in one drum, two ends should be sealed,. Two ends should be packed inside drum.

4.2 MARK: length, brand  drum mark: manufacturer, cable category, No. of drum, length, GW. direction of rotation, manufacturing date.

4.3 Package Length: by order
