LASUN | Elevator Hybrid FO GDXW 2+1 (LX2033) | ||||||
| Configuration & Physical characters | ||||||

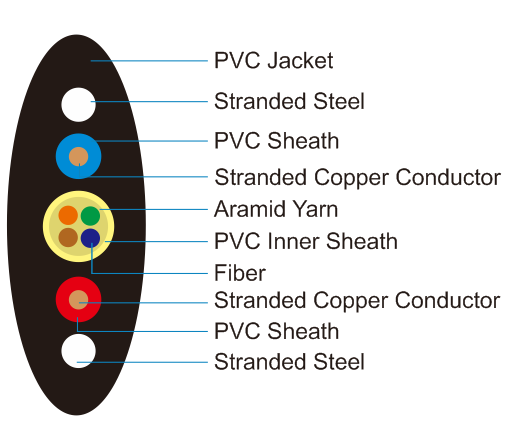

| GDXW elevator hybrid cable structure is 250 mu optical fiber and aramid yarn reinforced by the tightly packed , which composed strong flexible, high resistance to subunits. This cable is central tube structure , 2 power cables are paralleled to the optical fiber unit ,the finished product is flat which increased the bending performance of the optical cable. High tensile strength, use PVC or LSZH | | |||||
| Product Specification | ||||||
| Cable Type | Fiber Count | Cable Diameter(mm) | Cable Weight(kg/km) | Tensile Strength | Crush Resistance | Bending Radius |
| Long/Short Term | Long/Short Term | Static/ Dynamic | ||||
| N | N/100mm | mm | ||||
| GDXW | 4 | 6.2±0.2mm*15.5mm±0.5mm | 150 | 1000/400 | 300/1000 | 10D/20D |
| Temperature Range | ||||||
| Working | -40℃~+70℃ | |||||
| Storage/Transportation | -40℃~+70℃ | |||||
| Installation | -20℃~+60℃ | |||||
| Product Features & Application | ||||||
| Characteristics: | ||||||
| Small diameter, light weight, small occupied space | ||||||
| Low customers purchasing costs , low cost of installation , low network construction | ||||||
| Excellent bending properties and good resistance to lateral pressure performance | ||||||
| Provide a variety of transmission technology, with the equipment of high adaptability and strong extensibility | ||||||
| Cost savings, the optical fiber as reserved , avoid the secondary wiring | ||||||
| Environmental protection flame retardant | ||||||
| Standards: | ||||||
| GDXW cable complies with Standard YD/T 901-2001 as well as IEC 60794-1. | ||||||
| Fiber Details | ||||||
| Fiber type | G.652D | G655 | G657A.2 | OM2 | OM3 | |
| MFD @1310nm | 9.2±0.4μm | 1550nm:9.6±0.5um | 8.8±0.4μm | 50±2.5um | 50±2.5um | |
| OD of Cladding | 128.0±0.7μm | 125.0±0.7μm | 125.0±0.7μm | 125±1.0um | 125±2.0um | |
| Core-cladding concentricity error | ≤0.5μm | ≤0.6μm | ≤0.5μm | ≤1.5um | ≤1.5um | |
| Non-circularity of cladding | ≤ 0.7% | ≤ 1.0% | ≤ 0.7% | ≤ 2.0% | ≤ 2.0% | |
| Cutoff wavelength | Λcc ≤1260 nm | Λcc ≤1450 nm | Λcc ≤1260 nm |
| | |
| Attenuation coefficient | ||||||
| 1310nm | ≤0.34 dB/km | 1550nm:≤0.22 dB/km | ≤0.35 dB/km | 850nm: ≤ 2.5dB/km | 850nm: ≤ 2.5dB/km | |
| 1550nm | ≤0.20 dB/km | 1625nm:≤0.24 dB/km | ≤0.22 dB/km | 1300nm: ≤ 0.7dB/km | 1300nm: ≤ 0.7dB/km | |
| Dispersion coefficient | 1285-1340nm≤-3.0-3.0ps/nm².km | 1530-1565nm≤2.0-6.0ps/nm².km |
|
|
| |
| 1550nm≤18ps/nm².km | 1565-1625nm≤4.5-11.2ps/nm².km |
|
|
| ||
| Zero-dispersion wavelength | 1312±10nm | ≤1520nm | 1300-1324nm | 1295-1320 nm | 1295-1320 nm | |
| Zero-dispersion point slope | ≤0.092ps/nm2.km | ≤0.084ps/nm2.km | ≤0.092ps/nm2.km | 1300-1320nm:≤ 0.11 ps/（nm2.km） | ≤0.11 ps/（nm2.km） | |
| PMDQ | PMD Q*≤0.2ps/km1/2 | PMD Q*≤0.2ps/km1/2 | PMD Q*≤0.2ps/km1/2 |
|
| |
| OD of coating layer | 245±5μm | 245±7μm | 245±5μm | 245±10um | 245±10um | |
| Screen tension | 100kpsi（0.7Gpa） | 100kpsi（0.7Gpa） | 0.69MPa | 100kpsi 0.7GPa | 100kpsi 0.7GPa | |
| PACKAGE AND MARK | ||||||
| 4.1 PACKAGE: Not allowed two length units of cable in one drum, two ends should be sealed,. Two ends should be packed inside drum. | ||||||
| 4.2 MARK: length, brand drum mark: manufacturer, cable category, No. of drum, length, GW. direction of rotation, manufacturing date. | ||||||
| 4.3 Package Length: by order | ||||||
