Outdoor Fiber Cable-GYTC8S

Configuration & Physical characters

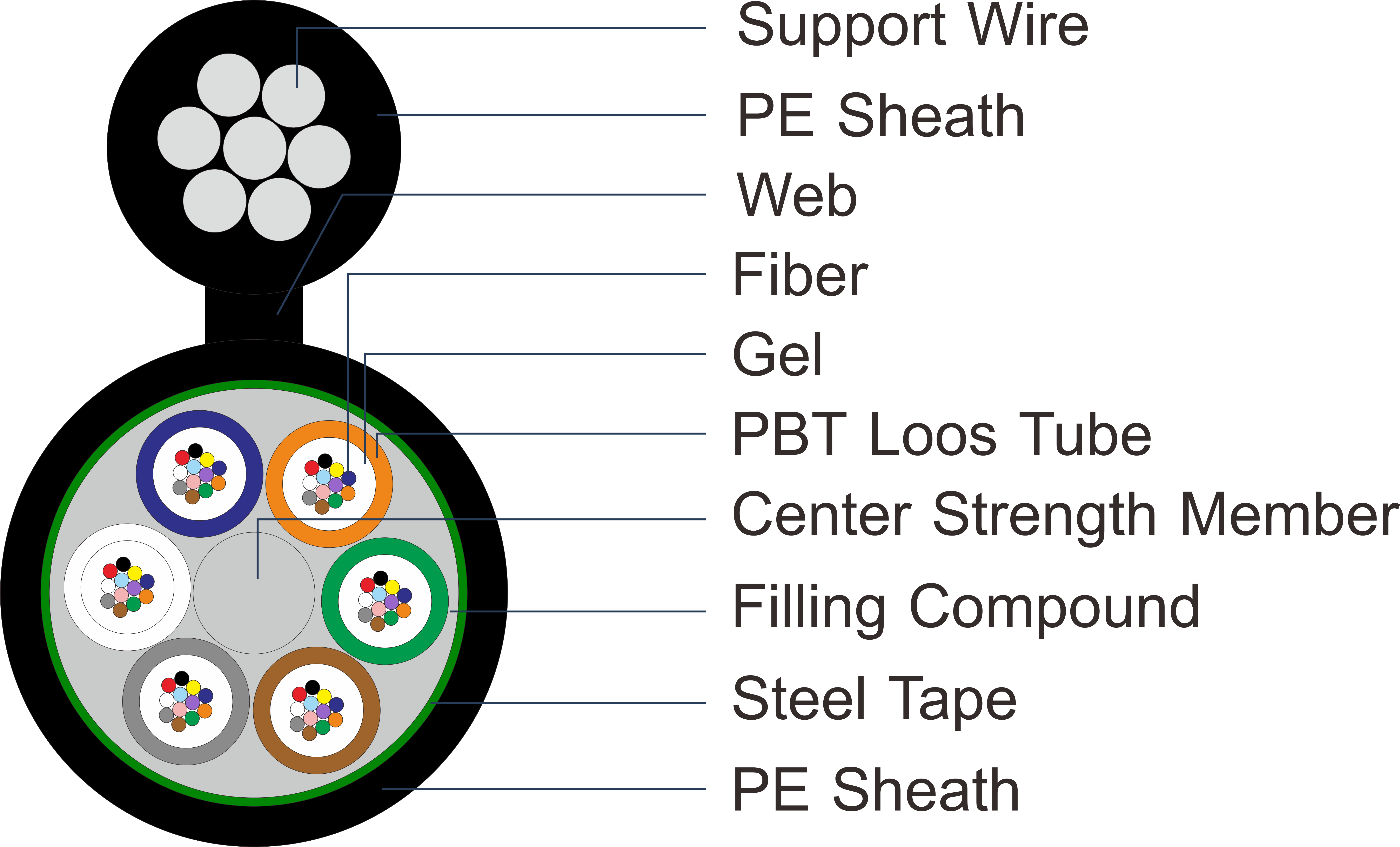

The fibers,125μm, either of single-mode or multimode type, are positioned in PBT tube  The tubes are filled with a water-resistant filling compound. Tubes stranded around the central steel strength member. Then, the cable is completed with a black or color PE sheath. Stranded steel wire as additional strength member with self supporting function.



Product Specification

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter(mm)

Cable Weight(kg/km)

Tensile Strength

Crush Resistance

Bending Radius

Long/Short Term

Long/Short Term

Static/ Dynamic

N

N/100mm

mm

GYTC8S

6

1

4

8.8*15.6

142

1000/3000

300/1000

10D/20D

GYTC8S

12

2

3

8.8*15.6

141

1000/3000

300/1000

10D/20D

GYTC8S

18

3

2

8.8*15.6

141

1000/3000

300/1000

10D/20D

GYTC8S

24

4

1

8.8*15.6

142

1000/3000

300/1000

10D/20D

GYTC8S

30

5

0

8.8*15.6

142

1000/3000

300/1000

10D/20D

GYTC8S

36

6

0

9.1*15.9

151

1000/3000

300/1000

10D/20D

GYTC8S

48

4

1

9.5*16.3

154

1000/3000

300/1000

10D/20D

GYTC8S

60

5

0

9.5*16.3

155

1000/3000

300/1000

10D/20D

GYTC8S

72

6

0

10*16.8

173

1000/3000

300/1000

10D/20D

GYTC8S

84

7

0

10.6*17.4

186

1000/3000

300/1000

10D/20D

GYTC8S

96

8

0

11.2*18

199

1000/3000

300/1000

10D/20D

GYTC8S

108

9

0

11.8*18.6

211

1000/3000

300/1000

10D/20D

GYTC8S

120

10

0

12.5*19.3

226

1000/3000

300/1000

10D/20D

GYTC8S

132

11

0

13.1*19.9

238

1000/3000

300/1000

10D/20D

GYTC8S

144

12

0

13.7*20.5

254

1000/3000

300/1000

10D/20D

Product Features & Application

Characteristics:

1. Good mechanical and temperature performance

2. Stranded steel wire with high tensile strength performance, self-supporting installatiion with low cost

3. PE sheath protects cable from ultraviolet radiation

4. The following measures are taken to ensure the cable watertight:

....Loose tube filling compound

....PSP enhancing moisture-proof

....Water-blocking material

Temperature Range

Working

-40℃~+60℃

Storage/Transportation

-50℃~+70℃

Installation

-20℃~+60℃

Fiber Details

Fiber type

G.652D

G655

G657A.2

OM2

OM3

MFD @1310nm

9.2±0.4μm

1550nm: 9.6±0.5μm

8.8±0.4μm

50±2.5um

50±2.5um

OD of Cladding

128.0±0.7μm

125.0±0.7μm

125.0±0.7μm

125±1.0um

125±2.0um

Core-cladding concentricity error

≤0.5μm

≤0.6μm

≤0.5μm

≤1.5um

≤1.5um

Non-circularity of cladding

≤ 0.7%

≤ 1.0%

≤ 0.7%

≤ 2.0%

≤ 2.0%

Cutoff wavelength

Λcc ≤1260 nm

Λcc ≤1450 nm

Λcc ≤1260 nm





Attenuation coefficient

1310nm

≤0.34 dB/km

1550nm : ≤0.22 dB/km

≤0.35 dB/km

850nm: ≤ 2.5dB/km

850nm: ≤ 2.5dB/km

1550nm

≤0.20 dB/km

1625nm: ≤0.24 dB/km

≤0.22dB/km

1300nm: ≤ 0.7dB/km

1300nm: ≤ 0.7dB/km

Dispersion coefficient

1285-1340nm≤-3.0 ~ 3.0 ps/nm².km

1530-1565nm≤2.0-6.0ps/nm².km







1550nm≤18ps/nm².km

1565-1625nm≤4.5-11.2ps/nm².km







Zero-dispersion wavelength

1312±10 nm

≤1520nm

1300nm-1324nm

1295-1320 nm

1295-1320 nm

Zero-dispersion point slope

≤0.092ps/nm2.km

≤0.084ps/nm2.km

≤0.092ps/nm2.km

1300-1320nm: ≤ 0.11 ps/(nm2.km)

  ≤0.11 ps/(nm2.km)

PMDQ

PMDQ*≤0.2ps/km1/2

PMDQ*≤0.2ps/km1/2

PMDQ*≤0.2ps/km1/2





OD of coating layer

245±5μm

245±7μm

245±5μm

245±10um

245±10um

Screen tension

100kpsi(0.7Gpa)

100kpsi(0.7Gpa)

0.69MPa

100kpsi   0.7GPa

100kpsi   0.7GPa

 PACKAGE AND MARK

4.1 PACKAGE: Not allowed two length units of cable in one drum, two ends should be sealed,. Two ends should be packed inside drum.

4.2 MARK: length, brand  drum mark: manufacturer, cable category, No. of drum, length, GW. direction of rotation, manufacturing date.

4.3 Package Length: by order
