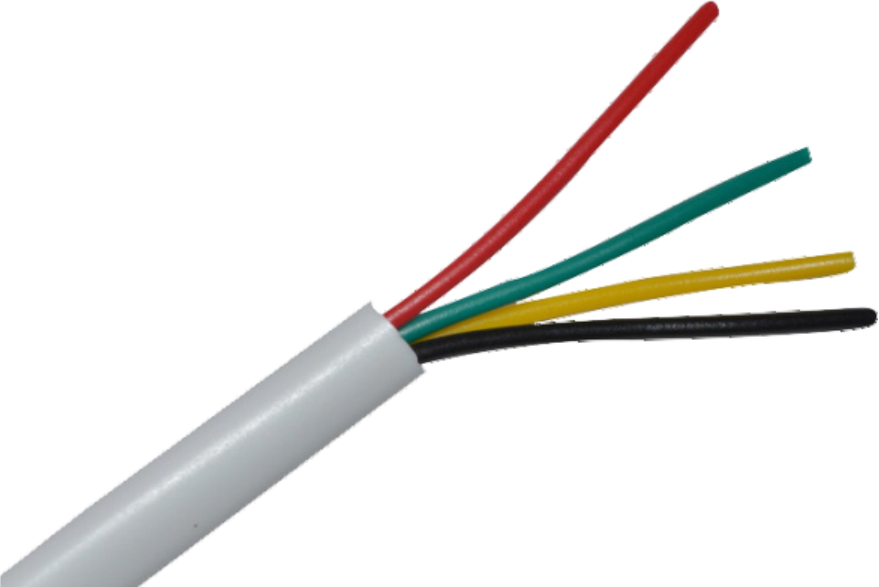

AVVR Copper Conductor PVC Flexible Cable for Installation(LX7051)

CreateDate:2017-01-13  Hits:



Product Description

AVVR is signal transmission wire and cable mainly used in anti-theft alarm systems, building intercom systems, electrical control lines, computers, meters and electronic equipment, and automation devices etc.

Product Features

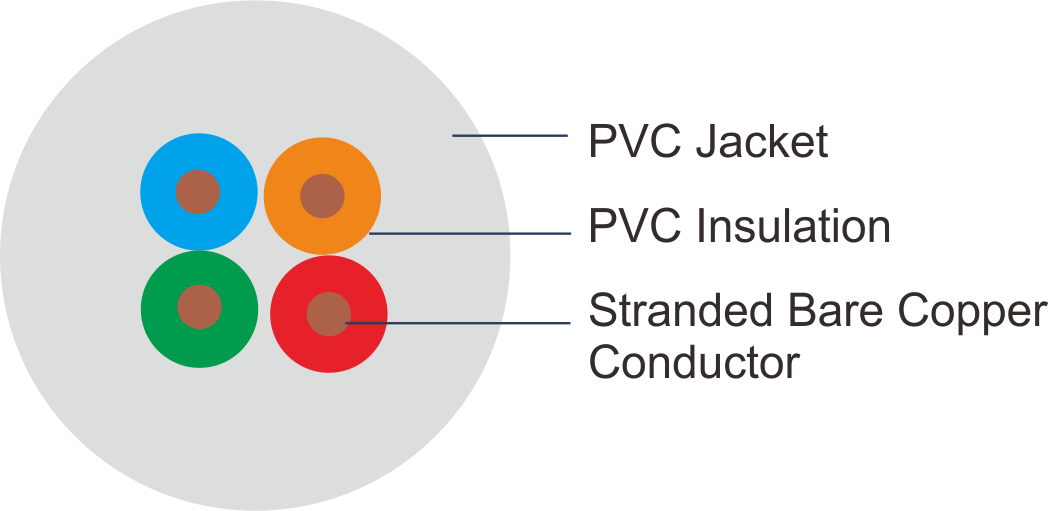

1. Conductor: Stranded Annealed Copper Conductor        2.Insulation: PVC

3. Jacket: PVC                                                4. Nominal Voltage: Uo/U 300/300V

5. Nominal temperature: -20~70℃                                        6. Packaging: Roll (PE Foam)                                    7.Length: 200M/ Roll

Technical Parameters (Product Standard: JB/T8734.5-2012)

Nominal Section

Conductor Size

Nominal Insulation Thickness

Shield Braiding Density Reference Value%

Sheath Thickness Predetermined Value

Average OD



20Conductor Resistance MAX Ω/KM

70 Insulation Resistance MAX MΩ/KM

Max

Min

2×0.12

7/0.15

0.4

80

0.6

3.3

4.3

158

0.016

2×0.2

16/0.15

0.4

80

0.6

3.6

4.7

92.3

0.014

2×0.12

16/0.15

0.5

80

0.6

4.1

5.3

69.2

0.014

2×0.12

7/0.15

0.4

80

0.6

3.4

4.5

158

0.016

3×0.2

12/0.15

0.4

80

0.6

3.8

4.9

92.3

0.014

3×0.3

16/0.15

0.5

80

0.6

4.4

5.7

69.2

0.014

4×0.12

7/0.15

0.4

80

0.6

3.8

4.9

158

0.016

4×0.2

12/0.15

0.4

80

0.6

4.2

5.4

92.3

0.014

4×0.3

16/0.15

0.5

80

0.6

4.8

6.2

69.2

0.014

5×0.12

7/0.15

0.4

80

0.6

4.1

5.3

158

0.016

5×0.2

12/0.15

0.4

80

0.6

4.5

5.8

92.3

0.014

5×0.3

16/0.15

0.5

80

0.6

5.3

6.7

69.2

0.014

6×0.12

7/0.15

0.4

80

0.6

4.4

5.7

158

0.016

6×0.2

12/0.15

0.4

80

0.6

4.9

6.3

92.3

0.014

6×0.3

16/0.15

0.5

80

0.6

5.7

7.3

69.2

0.014

10×0.12

7/0.15

0.4

80

0.6

5.7

7.2

158

0.016

10×0.2

12/0.15

0.4

80

0.6

6.3

8.0

92.3

0.014

10×0.3

16/0.15

0.5

80

0.8

7.8

9.7

69.2

0.014

12×0.12

7/0.15

0.4

80

0.6

5.8

7.4

158

0.016

12×0.2

12/0.15

0.4

80

0.6

6.5

8.2

92.3

0.014

12×0.3

16/0.15

0.5

80

0.8

8.0

10.1

69.2

0.014
