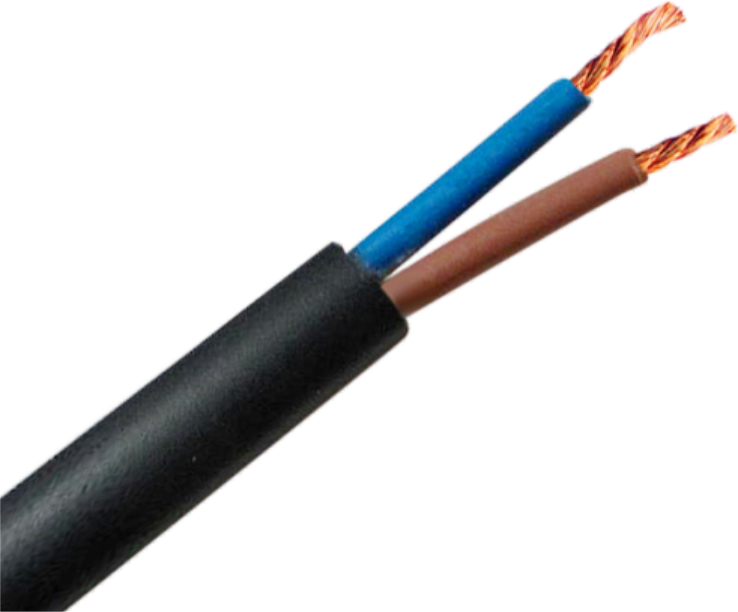

Product Description

RVV is mainly used in the field of light electric appliance,instrumentation equipment,household appliances,security monitoring,dynamic lighting and other places of flexible Field-Of-Use.It can transfer & control signals,transmission power signals,and suitable for installation in the bridge and loose tube.

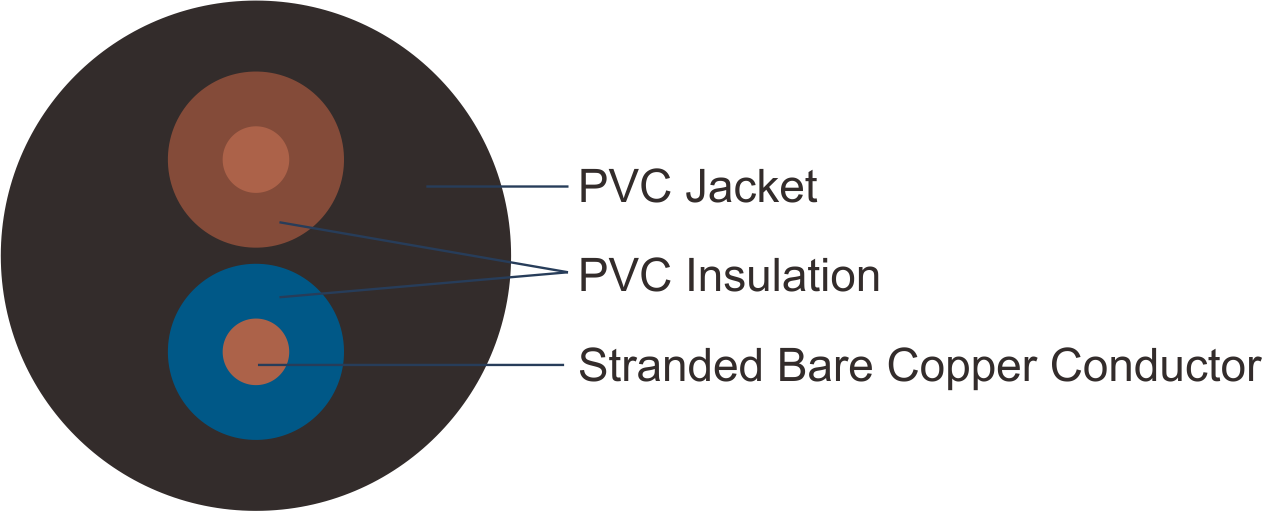

Product Features

1. Conductor: Stranded Annealed Copper Conductor       2. Insulation: PVC

3. Jacket: PVC                                              4. Rated voltage: Uo/U-300/300V

5. Rated temperature: -20~70℃                                           6. Packaging: Roll (PE Foam)

7.Length: 200M/ Roll

Technical Parameters (Product Standard: GB/T5023.5-2008)

Nominal Section

Conductor Size

Nominal Insulation Thickness

Sheath Thickness Predetermined Value

Average OD

20℃Conductor Resistance MAX Ω/KM

70℃ Insulation Resistance MAX MΩ/KM

Max

Min

2×0.5

16/0.2

0.5

0.6

5.9

4.6

39.0

0.012

2×0.5

16/0.2

0.5

0.6

3.7×5.9

3.0×4.9

39.0

0.012

2×0.75

24/0.2

0.5

0.6

6.3

4.9

26.0

0.01

2×0.75

24/0.2

0.5

0.6

3.8×6.3

3.2×5.2

26.0

0.01

3×0.5

16/0.2

0.5

0.6

6.3

4.9

39.0

0.012

3×0.75

24/0.2

0.5

0.6

6.7

5.2

26.0

0.01
