Description:

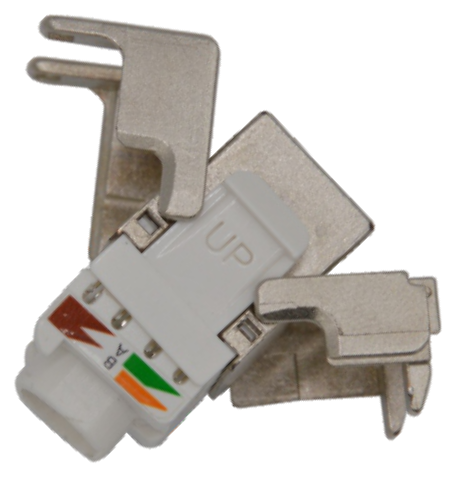

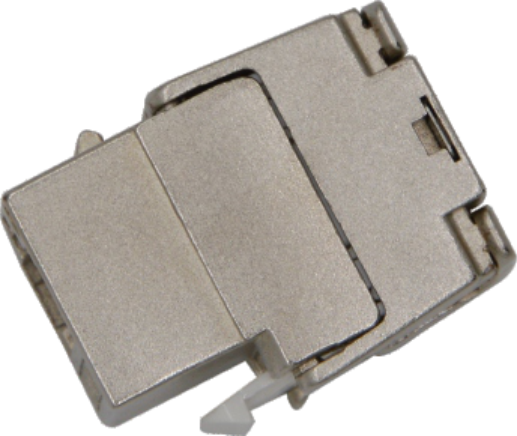

1.Category 6 STP ,FTP 90 and 180 degree key stone jack fits all standard keystone jack openings and with an adapter it can be used with wall plates.

2.The jack can be terminated using either a Krone or 110 style impact tool and can be configured to suit T568A or T568B wiring, this is high quality jack.

3.The Category 6 jack has been designed for high-speed voice & data applications and exceeds all ANSI/TIA/EIA 568B and ISO/ IEC 11801 Standards requirements.

4.The jack can be used together with Category 6 cable and accessories to construct a link or channel with Category 6 performance

Key Features:

1.Fits standard keystone jack openings

2.8-position unscreened modular connector (RJ45) with 50 micro of gold over nickel contacts

3.Fully Standards Cat 6 performance

4.Suitable for Category 6 links and channels Materials: PC

PERFORMANCE SPECIFICATIONS:

ISO/IEC11801: 2002  ANSI/TIA/EIA-568-B.2

MECHANICAL SPECIFICATIONS:

ISO/IEC11801: 2002

Jack insertion durability: ≥750 mating cycles

Plug & jack contact force: ≥100g with FCC approved plug

Plug retention force: ≥133N

ELECTRICAL SPECIFICATIONS:

Insulation resistance: ≥500 MΩ

Contact resistance: ≥20 MΩ

DC resistance: ≥0.1 Ω

Current rating: ≥1.5A

PHYSICAL SPECIFICATIONS:

Housing:   Flame retardant plastic, UL94V-O

RJ45, 8-position connector: Meets FCC part 68 and IEC 603-7

Connector wiring:  30u g old plating

IDC wire range:  Solid or stranded, 22-26 AWG, 0.64mm - 0 .4mm

Operating temperature range:  -10°C to 60° C

SUPPORTED APPLICATIONS:

Voice

ISDN: Basic & Primary Access

Token Ring: 4/16/100 Mbps

ATM: 25/52/155 Mbps

Ethernet: 10BASE-T; Fast Ethernet: 100BASE-TX/T2/T4; Gigabit Ethernet: 1000BASE-T

Broadband video
