Description

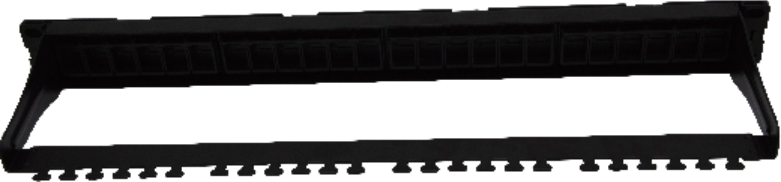

LASUN unshield patch panel is suitable for Equipment room or wiring closet of sub-system, to achieve network horizontal allocation or interruption of equipment connections. Connect the horizontal shielded network cable through the back module, and connect the jumper to the network switching device through the front RJ45 socket. Compliant with ANSI / TIA-568-C.2 channel specification.

Features

1.Segmented modular bracket design, plastic and metal components, greatly improve the product's aesthetics, while ensure product performance

2.Metal part use quality high-strength cold-rolled steel, surface with anti-static treatment,…

Long life, Plastic part use ABS & PC material, which meets the needs of the

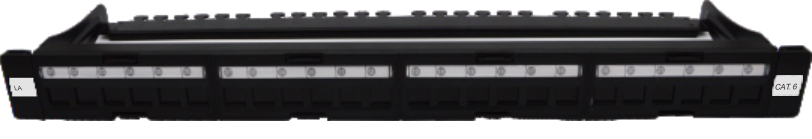

3.Front with sliding dustproof door, not only protect the module from dust, but also intuitive understanding of the situation of the module. Effectively protect the module interface when installation and usage.

4.Can be one-handed operation, which is more convenient and reliable than flip-type dustproof door. Not easy to fall. The upper with network or telephone identification,

the lower with transparent label strip, can be flexible demolition.

5.Support front demolition maintenance, convenient for construction and future maintenance management.

6.Support a variety of non-shielded modules free transfer.

Parameters

Insertion life: 1000 times

Humidity: 10% to 90% RH

Applicable wire gauge: 22 ~ 24

Rated temperature: -20 ~ 70 ℃

Packing / Material

Quantity

Size

Inner packing - box

1 set/box

 500X200X65MM

Outer packing - carton

8 boxes/carton

520X300X434MM
