Product Description: U/FTP Cat6a
Rate Temperature: 60℃,75℃,90℃
Reference Standard: UL444,UL1581,UL1666
Flame Test: CM,CMR
Installation Temperature: -30℃~+50℃        RoHS/REACH Complied

Application:
100 Base-TX
100 Base-T
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
1000 Base-TX

 10G Base-T

PRODUCT & SPEC.

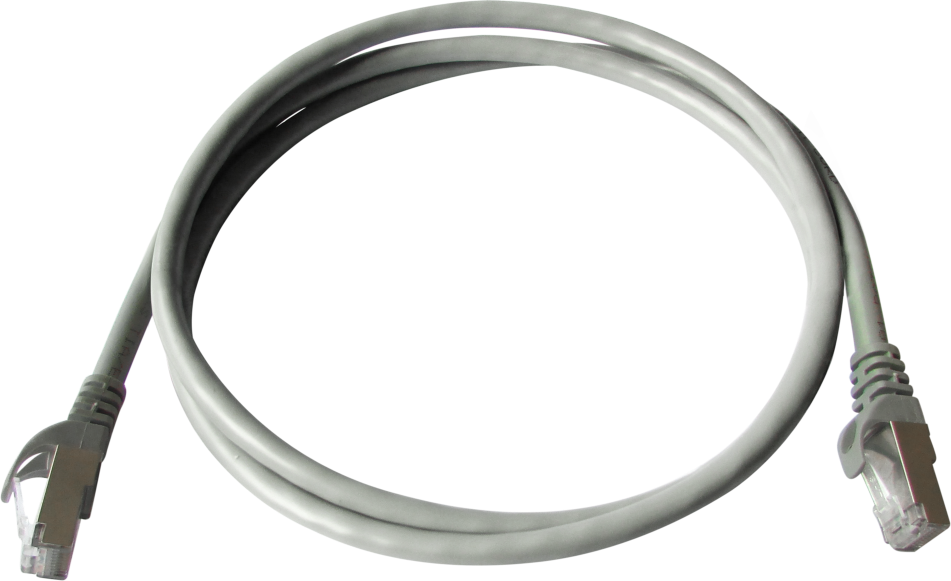

 Cat6a Patch Cord

INDESIDE

4 Pair

Structure

Construction

U/FTP

Conductor Dimension

7/0.16mm

Conductor Material

Stranded Bare Copper

Insulation

Insulation Material

HDPE

Insulation Dimension

  0.87±0.05mm

Number Color
 ( Ring or Strip Making)

1.blue/blue&white
2.Orange /Orange &white
3.green/green&white
4.Brown/Brown&white.

Cross Section Electrical Characteristics
(20°C)

Test Item :
1. Conductor D.C. Resistance

Cross Filer

NO

Units: /100m

Description

2.Shielded Connector

Cat6a RJ45 Plug

3.Strain Relief Boot

PVC

Physical Characteristics

  Unaged

Elongation

Tensil strength

Shield

Individual Shield Material

YES ( AL Foil, Pair by Pair)

  Insulation

>300%

>16.8KPa

Outer Shield Material

NO

    Jacket

>100%

>14.1KPa

Sheath

Outer Jacket Material

PVC or LSZH

Aged

100℃

48 Hrs

Outer Jacket Ripcord

YES

  Insulation

>75% Unaged

>75% Unaged

Thickness

0.7±0.05mm

    Jacket

>50% Unaged

>75% Unaged

Outer O.D

  6.5±0.15mm

Surface

Clean,Frap,Satiation

Packing

Packing Length

As customer request

PE bag,Carton

/

Carton Dimension

44*26*31cm
