OPGW (LX2034/LX2035)

Configuration & Physical characters

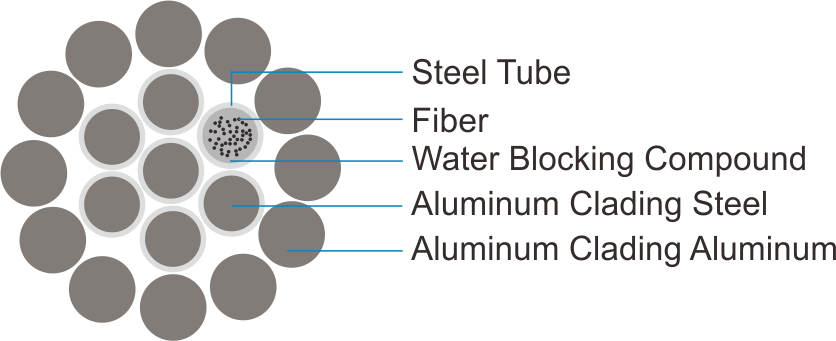

OPGW cable places fiber  in the earth wire overhead high voltage transmission line, which constitute of optical fiber communication   transmission network .  OPGW structure has  double functions in  ground wire  and communication . The structure is composed of  aluminum tube, aluminum frame and type (stainless) steel tube .The structure of OPGW cable is 250 μm optical fiber set into the tube made of stainless steel,  the AS stranded around the tube  ,  the AA wire stranded around the AS wire  . Electric power system  uses the OPGW to transmits telephone, remote signal, relay protection, such as television image information between the transformer substation and dispatching center .

Product Specification

Cable Type

Fiber Count

Cable Diameter(mm)

Cable Weight(kg/km)

SUS Tube

First Layer 20.3% AS

Second  Layer 20.3% AS

OD

OD

OD

MM

MM

MM

OPGW

24

12.1mm

569

2.5

2.4

2.4

Temperature Range

Working

-40℃~+70℃

Storage/Transportation

-40℃~+70℃

Installation

-20℃~+60℃

Product Features & Application

Characteristics:

Advanced stainless steel pipe production technology, filled with water blocking compounds, can effectively protect the optical fiber

Compact structure, high tensile strength

Small mutual interference between the short circuit current of power grids and communications network

Dual function of ground wire and communication optical cable  , eliminate the huge cost of repeated installation and maintenance charge

Easy maintenance ,easy to solve the problem of line crossing ,the mechanical properties can meet the largest  span,

Standards:

OPGW  cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.

Fiber Details

Fiber type

G.652D

G655

G657A.2

OM2

OM3

MFD @1310nm

9.2±0.4μm

1550nm: 9.6±0.5μm

8.8±0.4μm

50±2.5um

50±2.5um

OD of Cladding

128.0±0.7μm

125.0±0.7μm

125.0±0.7μm

125±1.0um

125±2.0um

Core-cladding concentricity error

≤0.5μm

≤0.6μm

≤0.5μm

≤1.5um

≤1.5um

Non-circularity of cladding

≤ 0.7%

≤ 1.0%

≤ 0.7%

≤ 2.0%

≤ 2.0%

Cutoff wavelength

Λcc ≤1260 nm

Λcc ≤1450 nm

Λcc ≤1260 nm

Attenuation coefficient

1310nm

≤0.34 dB/km

1550nm ： ≤0.22 dB/km

≤0.35 dB/km

850nm: ≤ 2.5dB/km

850nm: ≤ 2.5dB/km

1550nm

≤0.20 dB/km

1625nm： ≤0.24 dB/km

≤0.22 dB/km

1300nm: ≤ 0.7dB/km

1300nm: ≤ 0.7dB/km

Dispersion coefficient

1285-1340nm≤-3.0 - 3.0 ps/nm².km

1530-1565nm≤2.0-6.0ps/nm².km

1550nm≤18ps/nm².km

1565-1625nm≤4.5-11.2ps/nm².km

Zero-dispersion wavelength

1312±10 nm

≤1520nm

1300nm-1324nm

1295-1320 nm

1295-1320 nm

Zero-dispersion point slope

≤0.092ps/nm².km

≤0.084ps/nm².km

≤0.092ps/nm².km

1300-1320nm: ≤ 0.11 ps/（nm².km）

  ≤0.11 ps/（nm².km）

PMDQ

PMD_Q^*≤0.2ps/km^1/2

PMD_Q^*≤0.2ps/km^1/2

PMD_Q^*≤0.2ps/km^1/2

OD of coating layer

245±5μm

245±7μm

245±5μm

245±10um

245±10um

Screen tension

100kpsi（0.7Gpa）

100kpsi（0.7Gpa）

0.69MPa

100kpsi   0.7GPa

100kpsi   0.7GPa

 PACKAGE AND MARK

4.1 PACKAGE: Not allowed two length units of cable in one drum, two ends should be sealed,. Two ends should be packed inside drum.

4.2 MARK: length, brand  drum mark: manufacturer, cable category, No. of drum, length, GW. direction of rotation, manufacturing date.

4.3 Package Length: by order
