Product Description：UTP Cat3
Rated temperature： 60℃,75℃,90℃
Reference Standard： UL444,UL1581 ,UL1666
Bare solid copper conductor
Rohs/REACH complied PVC Jacket
Flame Test:： CMX,CM,CMR
Installation temperature： -30℃～+50℃

Application:

10 Base

100 Base-T4

Voice and Telephone wiring

Data Sheet

General

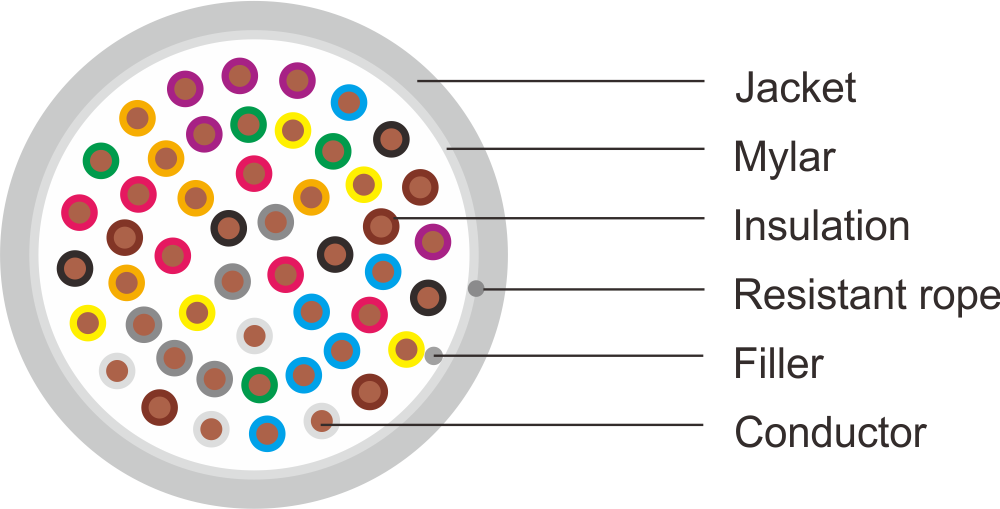

U/UTP Cat3 25P PVC

Test Standard

ISO/IEC11801,TIA-568-C.2, EN 50173 YD/T1019

Conductor

Material

Solid-Bare Copper

O.D(mm)

0.50

up

+0.005

down

-0.005

Insulation

Material

HDPE

I.D

0.87± 0.02mm

Sheath

Thickness

0.85±0.4 mm

Sheath Physical Properties

Tensile before aging(MPA)≥ 13.5

      Elongation(%)  ≥ 150

Outer O.D

11.3±0.8mm

Surface

Clean,Frap,Satiation

Aging Period(*hrs) 100*24h*7d

Material

PVC or LSZH

Tensile after aging(MPA)≥ 12.5

      Elongation(%)  ≥ 125

Color

 As customer requires

Cold Bend(-20±2*4hrs)

 Pairs

Bl./Wh.-Bl.Ora./Wh.-Ora. Gn./Wh.-Gn. Br./Wh.-Br. Gr./Wh.-Gr. Bl./ Re.-Bl. Ora./ Re.-Ora. Gn./ Re.-Gn. Br./Re.-Br.  Gr./ Re.-Gr. Bl./ Bla.-Bl. Ora./ Bla.-Ora. Gn./ Bla.-Gn.Br./ Bla.-Br. Gr./ Bla.-Gr. Bl./ Yel.-Bl. Ora./ Yel.-Ora. Gn./ Yel.-Gn. Br./ Yel.-Br. Gr./ Yel.-Gr. Bl./ Pur.-Bl. Ora./ Pur.-Ora. Gn/ Pur.-Gn. Br./ Pur.-Br.  Gr./ Pur.-Gr

Electrical Characteristics

1-16MHZ Impedance            100±15Ω

Delay Shew(ns/100m)  ≤ 45

 NVP   69%

Packing

Spools

Capacitance(NF/100M) Max   5.6

Packing Length

500±2.5m

DC Resistance(Ω/100M)Max    9.5

DC Resistance Unbalance

≤ 5%

Rip Cord

yes

Drain Wire

No
