Product Description

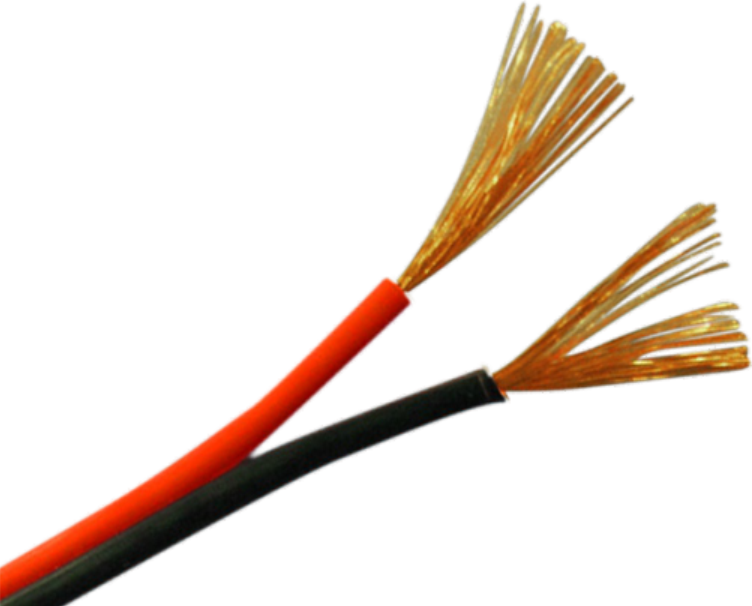

RVB Flat Non-sheathed Flexible Wire , commonly known as the red and black wire. Is mainly used to connect the power amplifiers with audio equipment, broadcast system transmitting the signals that was processed and amplified by the power amplifier. And also used on home appliances, small electric tools, instruments, meters and dynamic lighting thread etc. Standard thickness, easy to peel, easy cutting.

Product Features

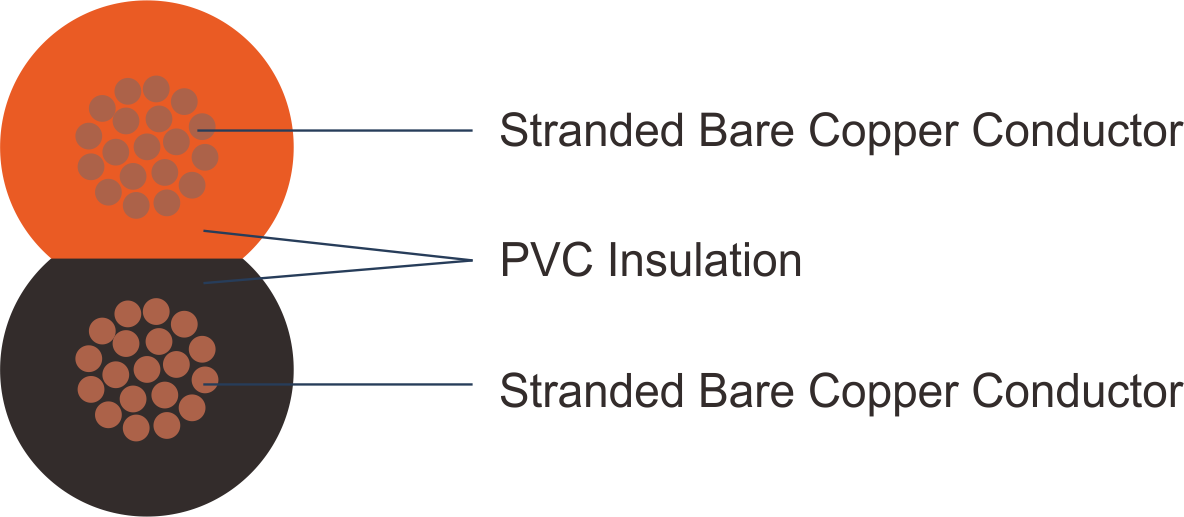

1.Conductor: Stranded Annealed Copper Conductor           2.Insulation: PVC

3.Nominal Voltage: Uo/U 300/300V                                         4.Nominal temperature: -20~70℃

5.Packaging: Roll (PE Foam)                                                   6. Length: 200M/ Roll

Technical Parameters (Product Standard: JB87345-2012)

Core Number*Nominal Section

Conductor Size

Nominal Insulation Thickness

Average OD

20℃ Conductor Resistance MAX Ω/KM

70℃ Insulation Resistance MAX MΩ/KM

Max.

Min

2X0.5

16/0.2

0.8

2.5X5.0

3.0X6.0

39.0

0.012

2X0.75

24/0.2

0.8

2.7X5.4

3.2X6.2

26.0

0.010

2X1.0

32/0.2

0.8

2.8X5.6

3.3X6.6

19.5

0.010

2X1.5

30/0.25

0.8

3.2X6.4

3.8/7.6

13.3

0.010

2X2.5

49/0.25

0.8

3.6X7.2

4.3/8.6

7.98

0.009
