Product Description

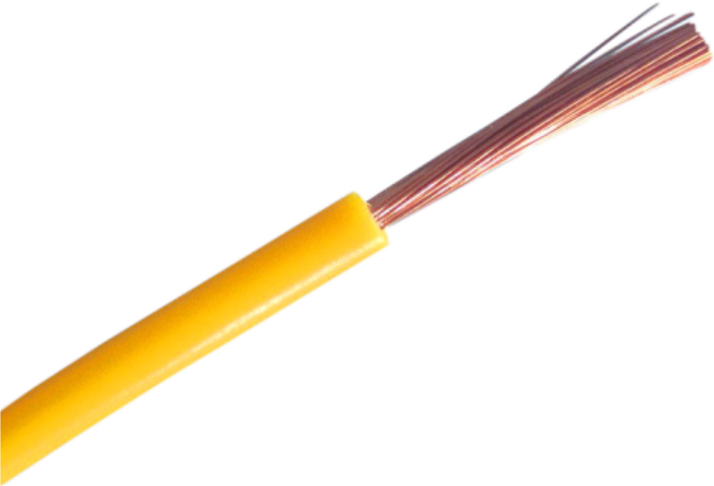

RV adopt soft stranded thin copper conductor structure, small bending radius of the conductor, has been widely used in the field of industrial distribution, particularly suitable for flexible installation place for the stricter requirements, applicable to electrical and electronic equipment used in power distribution lines and equipment lines, household appliances, small electric tools, instrumentation and power lighting devices connected.

Product Features

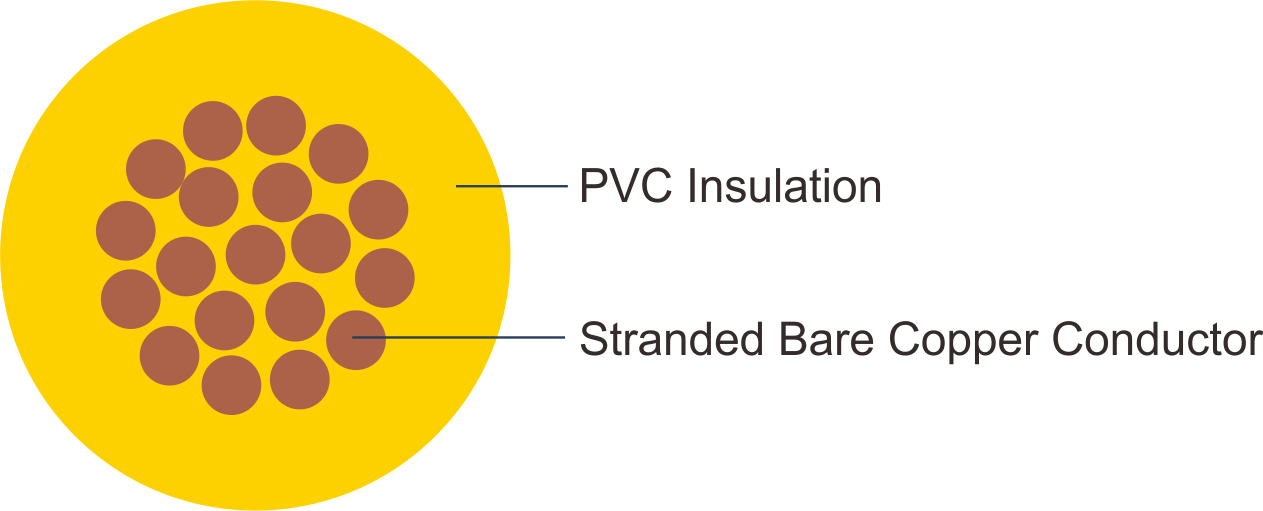

1. Conductor: Stranded Annealed Copper Conductor         2.Insulation: PVC

3.Nominal Voltage: Uo/U 300/500V                                      4. Nominal temperature: -20~70℃

5. Packaging: Roll (PE Foam)                                                   6. Length: 200M/ Roll

Technical Parameters (Product Standard: GB5023.3-2008)

Nominal Section

Conductor Size

Nominal Insulation Thickness

Average OD Max

20℃ Conductor Resistance MAX Ω/KM

70℃ Insulation Resistance MAX MΩ/KM

0.5

16/0.2

0.6

2.6

39.0

0.013

0.75

24/0.2

0.6

2.8

26.0

0.011

1.0

32/0.2

0.6

3.0

19.5

0.01
