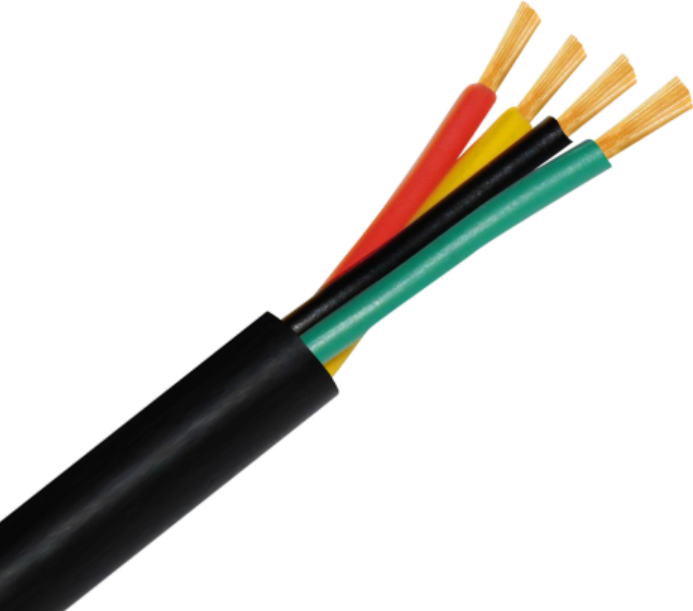

Product Description

RVV is mainly used in the field of light electric appliance,instrumentation equipment,household appliances,security monitoring,dynamic lighting and other places of flexible Field-Of-Use.It can transfer & control signals,transmission power signals,and suitable for installation in the bridge and loose tube.

Product Features

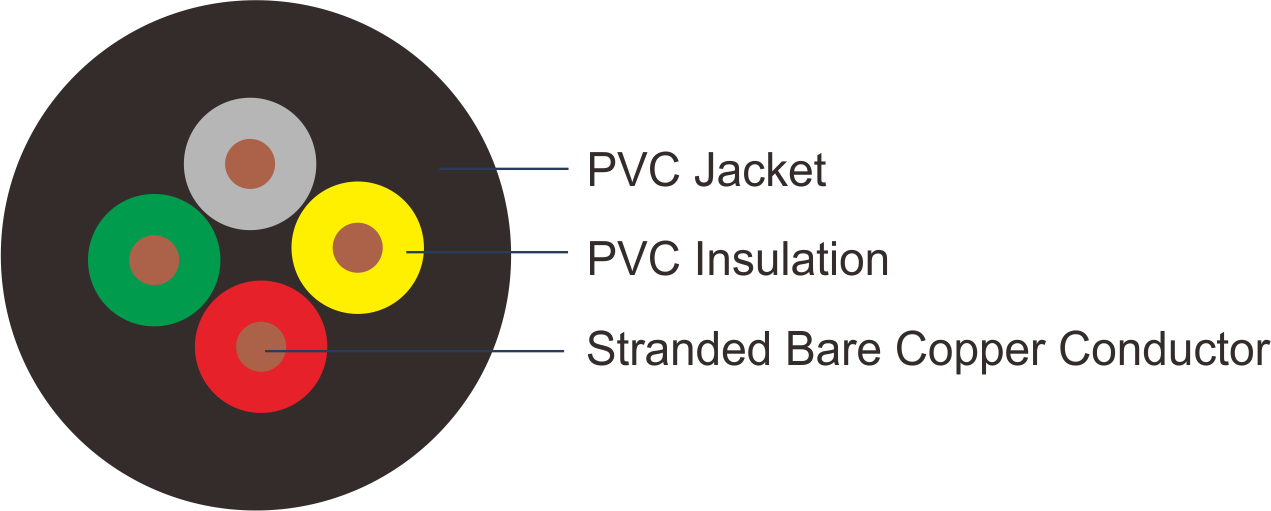

1. Conductor: Stranded Annealed Copper Conductor        2. Insulation: PVC

3. Jacket: PVC                                               4. Rated voltage: Uo/U-300/500V

5. Rated temperature: -20~70℃                                             6. Packaging: Roll (PE Foam)

7.Length: 200M/ Roll

Technical Parameters (Product Standard: GB/T5023.5-2008)

Nominal Section

Conductor Size

Nominal Insulation Thickness

Sheath Thickness Predetermined Value

Average OD

20℃Conductor Resistance MAX Ω/KM

70℃ Insulation Resistance MAX MΩ/KM

Max

Min

2×0.75

24/0.2

0.6

0.8

7.2

5.7

26.0

0.011

2×0.75

24/0.2

0.6

0.8

4.5×7.2

3.7×6.0

26.0

0.011

2×1.0

32/0.2

0.6

0.8

7.5

5.9

19.5

0.01

2×1.0

32/0.2

0.6

0.8

4.7×7.5

3.9×6.2

19.5

0.01

2×1.5

30/0.25

0.7

0.8

8.6

6.8

13.3

0.01
