Product Description

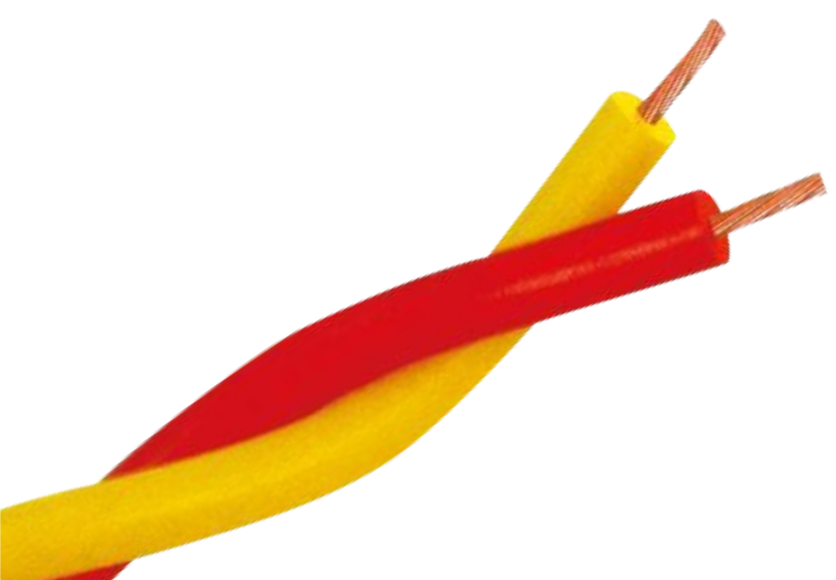

RVS suitable for Fire Alarm System、Instrument of Broadcast System and power lighting cable.

Product Features

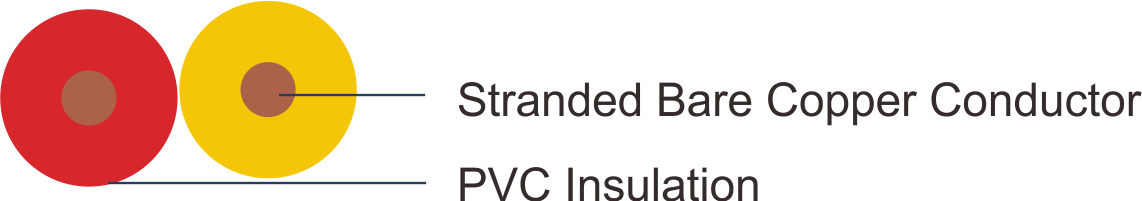

1. Conductor: Stranded Annealed Copper Conductor        2. Insulation: PVC

3. Rated voltage: Uo/U-300/300V                     4. Rated temperature: -20~70℃

5 Packaging: Roll (PE Foam)                          6.Length: 200M/ Roll

Technical Parameters (Product Standard: JB/T8734.5-2012)

Nominal Section

Conductor Size

Nominal Insulation Thickness

Average OD Max

20℃Conductor Resistance MAX Ω/KM

70℃ Insulation Resistance MAX MΩ/KM

2×0.50

16/0.2

0.8

6.0

39.0

0.016

2×0.75

24/0.2

0.8

6.2

26.0

0.014

2×1.00

32/0.2

0.8

6.6

19.5

0.012

2×1.5

48/0.2

0.8

7.2

13.3

0.010

2×2.5

36/0.2

0.8

8.2

7.98

0.009
