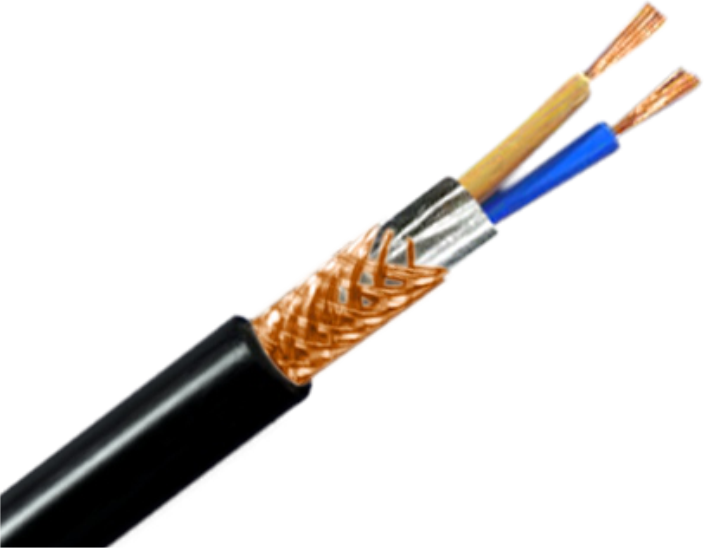

| Product Description RVVP is suitable for the connection of interference-prevention circuits such as building automation control system, burglar alarm system, communication, audio, sound system, instrument, electronic equipment and automation equipment. | |||||||||

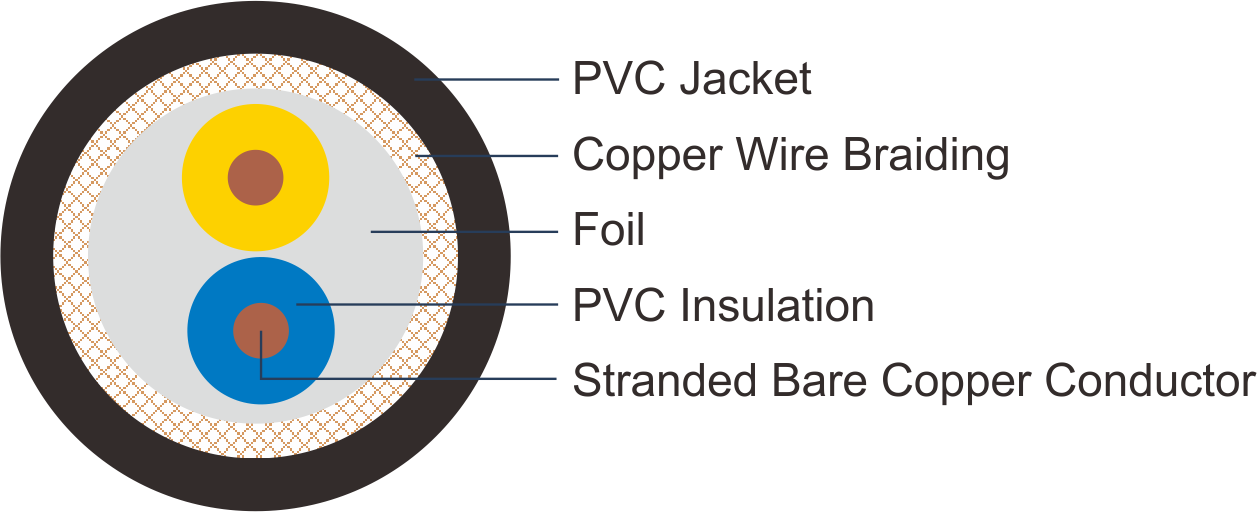

| Product Features 1. Conductor: Stranded Annealed Copper Conductor 2. Insulation: PVC 3. Jacket: PVC 4. Rated voltage: Uo/U-300/300V 5. Rated temperature: -20~70℃ 6. Packaging: Roll (PE Foam) 7.Length: 200M/ Roll | |||||||||
| Technical Parameters (Product Standard: JB/T8734.5-2012) | |||||||||
| Nominal Section | Conductor Size | Nominal Insulation Thickness | Shield Braiding Density Reference Value≥% | Sheath Thickness Predetermined Value | Average OD | 20℃Conductor Resistance MAX Ω/KM | 70℃ Insulation Resistance MAX MΩ/KM | ||
| Min | Max | ||||||||
| 2×0.3 | 16/0.15 | 0.5 | 80 | 0.6 | 4.8 | 6.2 | 69.2 | 0.014 | |
| 2×0.5 | 16/0.2 | 0.5 | 80 | 0.6 | 5.3 | 6.8 | 39.0 | 0.012 | |
| 2×0.75 | 24/0.2 | 0.5 | 80 | 0.6 | 5.8 | 7.4 | 26.0 | 0.01 | |
| 2×1.0 | 32/0.2 | 0.6 | 80 | 0.6 | 6.4 | 8.2 | 19.5 | 0.01 | |
| 3×1.5 | 30/0.25 | 0.6 | 80 | 0.8 | 7.3 | 9.2 | 13.3 | 0.009 | |
| 3×0.2 | 12/0.15 | 0.4 | 80 | 0.6 | 4.5 | 5.8 | 92.3 | 0.013 | |
| 3×0.3 | 16/0.15 | 0.5 | 80 | 0.6 | 5.1 | 6.5 | 69.2 | 0.014 | |
| 3×0.5 | 16/0.2 | 0.5 | 80 | 0.6 | 5.6 | 7.1 | 39.0 | 0.012 | |
| 3×0.75 | 24/0.2 | 0.5 | 80 | 0.6 | 6.1 | 7.8 | 26.0 | 0.01 | |
| 3×1.0 | 32/0.2 | 0.6 | 80 | 0.8 | 7.2 | 9.1 | 19.5 | 0.01 | |
| 3×1.5 | 30/0.25 | 0.6 | 80 | 0.8 | 8.0 | 10.0 | 13.3 | 0.01 | |
| 4×0.2 | 12/0.15 | 0.4 | 80 | 0.6 | 4.9 | 6.2 | 92.3 | 0.014 | |
| 4×0.3 | 16/0.15 | 0.5 | 80 | 0.6 | 5.5 | 7.0 | 69.2 | 0.013 | |
| 4×0.5 | 16/0.2 | 0.5 | 80 | 0.8 | 5.8 | 7.8 | 39.0 | 0.012 | |
| 4×0.75 | 24/0.2 | 0.5 | 80 | 0.8 | 6.1 | 8.1 | 26.0 | 0.01 | |
| 4×1 | 32/0.2 | 0.6 | 80 | 0.9 | 7.4 | 9.4 | 19.5 | 0.01 | |
| 2×2×1 | 32/0.2 | 0.6 | 80 | 1.0 | 8.4 | 10.4 | 19.5 | 0.01 | |
| 4×1.5 | 30/0.25 | 0.6 | 80 | 0.9 | 8.0 | 10.0 | 13.3 | 0.01 | |
| 6×0.5 | 16/0.2 | 0.5 | 80 | 0.8 | 7.0 | 9.0 | 39.0 | 0.013 | |
| 6×0.75 | 24/0.2 | 0.5 | 80 | 0.8 | 7.5 | 9.5 | 26.0 | 0.011 | |
| 6×1 | 32/0.2 | 0.6 | 80 | 1.0 | 9.0 | 11.0 | 19.5 | 0.01 | |
| 8×0.5 | 16/0.20 | 0.5 | 80 | 0.8 | 8.1 | 10.0 | 39.0 | 0.012 | |
| 8×0.75 | 24/0.20 | 0.6 | 80 | 0.8 | 9.4 | 11.4 | 26.0 | 0.010 | |
| 2×2×0.3 | 16/0.15 | 0.5 | 80 | 0.8 | 6.20 | 8.20 | 69.2 | 0.014 | |
| 2×2×0.5 | 16/0.2 | 0.5 | 80 | 0.9 | 6.8 | 8.8 | 39.0 | 0.01 | |
| 2×2×0.75 | 24/0.2 | 0.5 | 80 | 1.0 | 7.4 | 9.4 | 26.0 | 0.01 | |
